100KM COFDM AHD FPV Long Range Wireless Video Transmitter Low Consumption

Name: 100KM COFDM AHD FPV Long Range Wireless Video Transmitter Low Consumption
Brand: HOWMELLY
Price: 1 USD

Brand Name : HOWMELLY

Model Number : HMMAT01

Certification : CE,FCC,ROHS

Place of Origin : China

MOQ : 1set

Price : USD1-5000 per set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000sets per month

Delivery Time : 10-15days

Packaging Details : 1 whole set strictly packed in papar box

Modulation : COFDM 2K QPSK/TDS-OFDM

Output power : 5-10W

Work frequency : 300MHz~900MHz (Adjustable)

Encryption : AES/ABS(128bit,256bit)

Channel bandwidth : 2/4/6/8MHz (Adjustable)

Video Input : HDMI,SDI,AV

Size : 215mm×120mm×70mm(L × W ×H)

Weight : 2.0kg (include battery)

Contact Now

100KM COFDM AHD FPV Digital Long Range Wireless Video Transmitter

Product Description:

HMMAT01 has adopted the leading COFDM modulation technique and can stably transmit one way HD video,one way stereo audio and one way transparent serial data more than 100-150km from air to ground. This model also has the feature of small size, light weight and low consumption which make it an ideal solution in high speed condition for data and video transmission of UAV, fixed wing UAV, helicopter, UAV, UGV and special vehicle.

Product Sell Point:

1. Support 5-10W adjustable by user, can transmit max 100-150km from air to ground
2. Strong anti-jamming and diffraction ability

3. Can stable transmit under NLOS high speed moving condition

4. AES128bits/265bits encryption ensures security

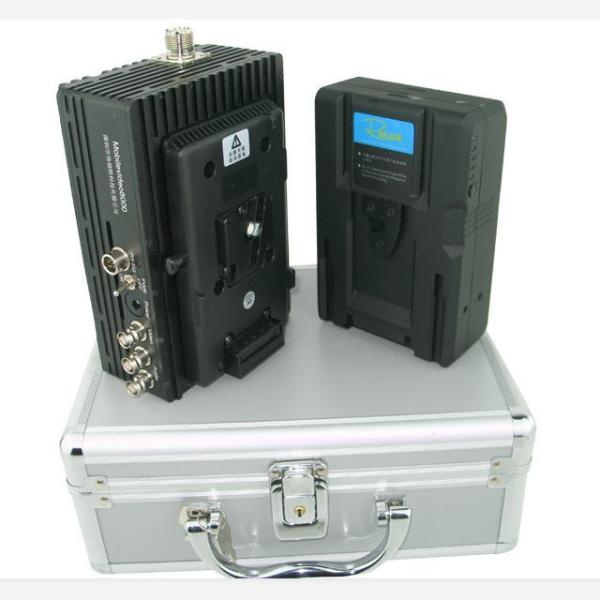

Transmitter Picture:

100KM COFDM AHD FPV Long Range Wireless Video Transmitter Low Consumption

Transmitter HMMAT01 Specification:

General Part:
Work frequency:	300MHz~5.8GHz (Adjustable)
Output power:	5W~10W (Adjustable)
Modulation:	COFDM 2K QPSK/TDS-OFDM
Channel bandwidth:	2/4/6/8MHz (Adjustable)
Encryption:	AES/ABS(128bit)
Code stream	0.8Mbps~10Mbp
End to end delay:	<40ms
Error rate:	≤10-6
FEC:	Viterbi (1/2,2/3,3/4)
Guard interval:	1/32,1/16,1/8,1/4
Encryption	AES256
Power Supply:	DC10V~16V/2.0A
Transmit distance:	Urban area:3-5 kilometer, More than 100-150km from air to ground
Audio&Video Part:
AV data format:	H.264,MPEG-2,MPEG-4@ML 4:2:0
Video input:	HDMI,HD-SDi,AV
Audio input:	Left and right channel
Video compression	Adopt H.265,H.264,MPEG-2,MPEG-4
Resolution:	1080P(19208*1080)compatible with 720× 576@ transmit rate is 30fps.
Audio&Video:	One way video,two way audio
Two way voice:	Two way voice is optional
Others:
Antenna:	Omnidirectional whip antenna
Battery:	work 4 hours (Continuously)
Weight:	2.0kg (include battery)
Size:	215mm×120mm×70mm(L × W ×H)
Work Temperature:	Temperature:-30~70℃ Relative humidity:90%
Reserve Temperature:	Temperature: -40~80℃ Relative humidity:90%

Receiver HMRMR01 Specification:

General Part:
Work frequency:	300MHz~ 5.8GHz(Adjustable)
Frequency Spectrum:	The frequency spectrum function is available
TALLY System:	TALLY system(Optional)
Receive sensitivity:	-106dBm
Power supply:	AC 220V
Audio&Video:
Video output:	HDMI,SDi,AV
Audio output:	Two way
Video compression:	H.265,H.264, MPEG-2@ ML 4:2:2 compatible with 4:2:0
Video rate:	25-30F/S
Resolution:	1920*1080 compatible with 720×620
Two way voice:	Two way voice is optional
Others:
Weight:	2.0kg
Size:	1U,19inch crate (480mm×220mm×45mm(L × W ×H)
Interface:	One way SD-SDI interface(imbedded audio) One way HD-SDI interface(Optional) One way HDMI interface(Optional) One way analog composite video signal RJ45 interface(Optional) Data interface can be provided
Parameter adjustable:	1.The signal quality,strength can be displayed on the LCD screen 2.The frequency,bandwidth,guard interval are adjustable
Work environment:	Temperature:-30~70℃ Relative humidity:90%
Reserve environment:	Temperature:-40~80℃ Relative humidity:90%

Our Service:

1. Lifelong maintainance

2. 24 hour technical support

3. Strong R&D capability; Customized project is welcomed

4. High quality product with competitive price,short delivery time and responsible after-sale service
